Exporting Data to the BigQuery Tables

Set up data export to tables to regularly update information about the audience, contacts' activity, and campaign results in BigQuery. Available datasets for export:

  • broadcasts;
  • contactActivities;
  • contacts;
  • devices;
  • events;
  • messages;
  • orderItems;
  • orders;
  • revenue.

This information will update the data in the BigQuery tables once a day after setting up.

📘

Note

You don’t need to pre-create BigQuery tables. They will be generated automatically at the first export, and since then all the incoming data will be updated. All the table names will correspond to the data sets.


Creating Data Export

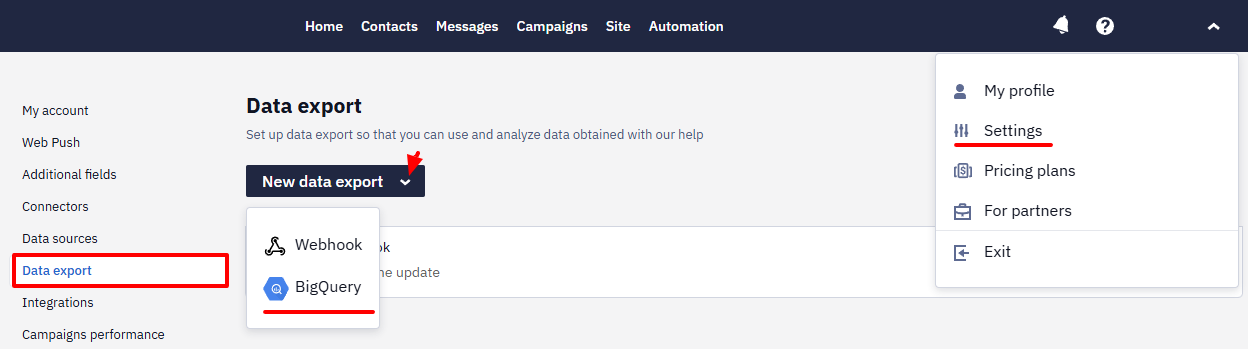

  1. Go to SettingsData ExportBigQuery.

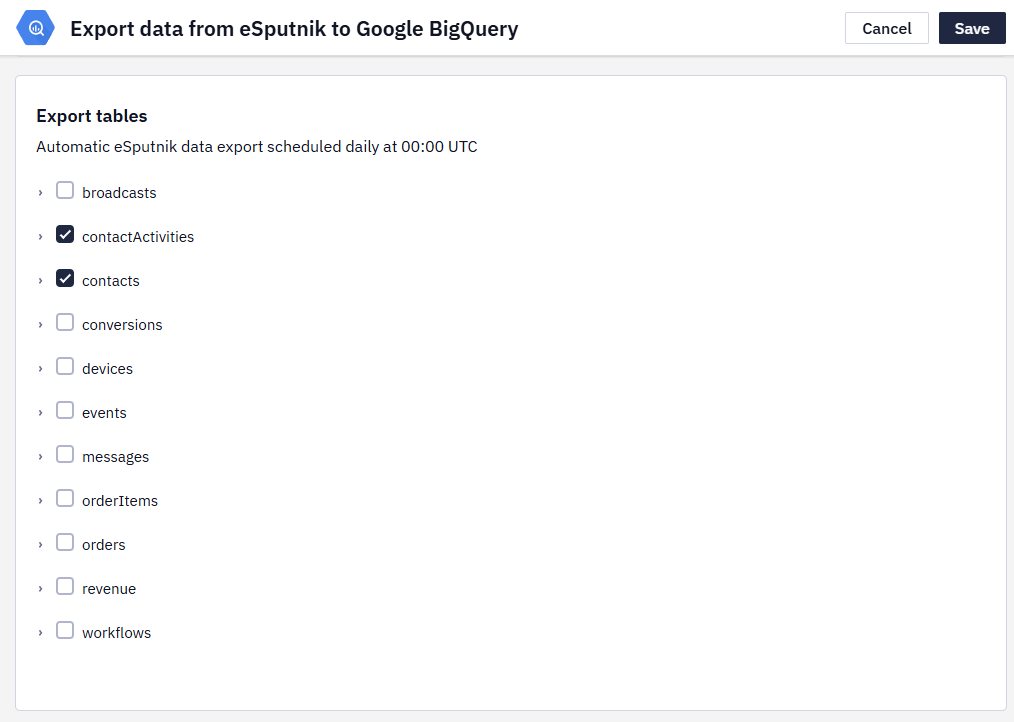

  1. Upload the key file and check the boxes for the data sets you want to upload. Click Save.

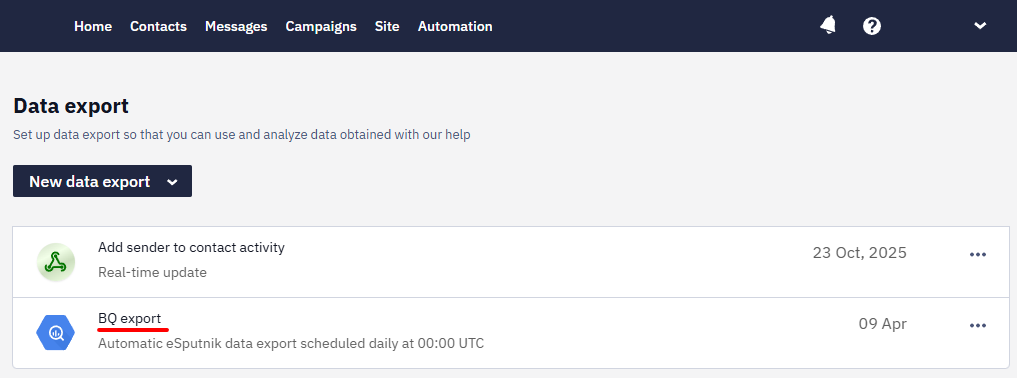

The connection will be displayed in the Data export section, here you can edit its settings.

List of Data Export Parameters

Broadcasts

Parameter

Type

Description

createdDate

timestamp

Day and time of message creation (format: '2021-10-08 11:11:02')

groupId

int

Segment IDs participating in the broadcast

id

int

Broadcast ID

mediaType

string

Media type (Sms, Email, WebPush, MobilePush, AppInbox, Widget)

messageId

int

Message ID

name

string

Broadcast name

startedDate

timestamp

Day and time of broadcast sending (format: '2021-10-08 11:11:02')

status

string

Broadcast statuses: • IDLE - completed; • RUNNING - started; • PAUSED - paused (if the mailing was not stopped manually by you, contact support for more details); • SCHEDULED - planned; • UNCONFIRMED - in queue for moderation; • CONSIDERATION - under moderation; • BLOCKED - blocked by moderator.

updatedDate

timestamp

Day and time of broadcast updating (format: '2021-10-08 11:11:02')

ContactActivities

Parameter

Type

Description

activity (activityStatus) *

string

Activity status: • DELIVERED – the message was delivered. • UNDELIVERED – the message was undelivered (statusDescription contains the reason). • RECEIVED – the message was opened. • UNSUBSCRIBED – a contact unsubscribed from the broadcasting list. • CLICKED – a contact clicked links in the message. • SPAM – a contact reported spam. • SUBSCRIPTION_CHANGED – a contact changed the subscription category. • PUSH_SUBSCRIBED — a contact subscribed to push notifications.

broadcastId

int

Broadcast ID

campaignType

string

Campaign type: • IM — triggered message, • Group — bulk campaign.

clickEventLink

string

Contains the link clicked by a contact (when the status is CLICKED)

contactId

int

Contact ID in Reteno (Internal)

errorCode (statusDescription) *

string

Delivery error SMTP and description

eventKey

string

Event key

eventTypeKey

string

Event type key

eventId

string

ID of an event that had started a workflow

externalCustomerId

string

Contact ID in your system (External)

iid

string

Sender name for Email and SMS

mediaType

string

Media type (Sms, Email, WebPush, MobilePush, AppInbox, Widget, In-App)

messageInstanceId

int

Service field

messageLanguageCode

string

Message language code

messageName

string

Message name in Reteno account

messageId

int

Message ID

messageTags

string

Message tags

messageURL

string

Contains the link to the email web-version

osName

string

Device operating system

osType

string

Device type

started (activityDateTime) *

timestamp

Day and time of message sending (format: '2021-10-08 11:11:02')

utmCampaign

string

Campaign UTM

workflowId

string

Workflow ID

workflowInstanceId

string

The identifier of a particular workflow launch. Use it to group mailings within the launch of a workflow.

workflowBlockId

string

Workflow block ID

*The field will be removed as overdated; use the field indicated in brackets

Contacts

Parameter

Type

Description

contactId

int

Contact ID in Reteno (Internal)

contactSource string

string

Contact source: • SITE_AUTOMATED - binding an email to a push subscriber (webPush collection script), • I_MESSAGE - sending a single message, • CAMPAIGN - workflow (block Create contact or Add to segment), • IMPORT - file import or Add contacts method, • MANUAL - manually created, • SUBSCRIPTION - subscription form (Subscribe a contact API method), • Add contact API method, • ORDER - order on the site (Add orders API method).

createdDate

timestamp

Contact creation date and time (format: '2021-10-08 11:11:02')

email

string

Contact email

emailDomain

string

Email domain

emailStatus

string

Email status

externalCustomerId

string

Contact ID in your system (External)

firstName

string

Contact first name

languageCode

string

Contact language code

lastClickedDate

timestamp

Day and time of the last click (format: '2021-10-08 11:11:02')

lastName

string

Contact last name

lastReceivedDate

timestamp

Day and time of the last delivery (format: '2021-10-08 11:11:02')

lastSentDate

timestamp

Day and time of the last sending (format: '2021-10-08 11:11:02')

lastViewedDate

timestamp

Day and time of the last opening (format: '2021-10-08 11:11:02')

sms

string

Phone number

totalClicked

int

Total clicks amount

totalReceived

int

Total received messages amount

totalSent

int

Total sent messages amount

totalViewed

int

Total viewed messages amount

Devices

ParameterTypeDescription
appVersionstringApp version
applicationIdintApp ID
categorystringCategory
contactIdintContact ID
deviceIdstringDevice ID
deviceModelstringDevice model
externalCustomerIdstringExternal customer ID
languageCodestringLanguage code
osTypestringOS type
osVersionstringOS version
pushTokenstringPush token
timeZonestringTime zone

Events

ParameterTypeDescription
contactIdintContact ID
eventIdintEvent ID
eventTypeKeystringEvent type
keyValuestringEvent key
occuredtimestampDate and time of occurrence (format: '2021-10-08 11:11:02')
paramsJsonjson50 first event parameters and values ​​(name/value); up to 300 characters of values ​​are transferred.

Messages

ParameterTypeDescription
annoyanceLevelintMessage annoyance level
languagestringLanguage of the main version of the message
mediaTypestringMedia type (Sms, Email, WebPush, MobilePush, AppInbox, Widget, In-App)
messageIdintMessage ID
namestringMessage name
replyTostringReply-to address
senderstringSender
subjectstringSubject
tagsstringTags
translationsstringLanguage versions of the message
updateDatetimestampDay and time of message updating (format: '2021-10-08 11:11:02')

OrderItems

ParameterTypeDescription
cost floatfloatProduct price
descriptionstringProduct description
externalProductIdstringExternal product ID
imageUrlstringProduct image link
namestringProduct name
orderDatetimestampOrder creation date (format: '2021-10-08 11:11:02')
orderIdintOrder ID in Reteno (Internal)
quantityintNumber of products
urlstringProduct URL

Orders

Parameter

Type

Description

contactId

int

Contact ID in Reteno (Internal)

deliveryAddress

string

Delivery address

deliveryMethod

string

Delivery method

discount

float

Discount

email

string

Email

externalOrderId

string

External order ID

firstName

string

Contact first name

lastName

string

Contact last name

orderCreatedDate

timestamp

Date of order creation in Reteno (format: '2021-10-08 11:11:02')

orderDate

timestamp

Order creation date (format: '2021-10-08 11:11:02')

orderId

int

Order ID in Reteno (Internal)

paymentMethod

string

Payment method

Phone

string

Phone number

Status

string

Order status: • INITIALIZED, • IN PROGRESS, • DELIVERED, • CANCELED.

totalCost

float

Total order cost

Revenue

Parameter

Type

Description

activity (activityStatus)*

string

Activity status: • DELIVERED – the message was delivered. • UNDELIVERED – the message was undelivered (statusDescription contains the reason). • RECEIVED – the message was opened. • UNSUBSCRIBED – a contact unsubscribed from the broadcasting list. • CLICKED – a contact clicked links in the message. • SPAM – a contact reported spam. • SUBSCRIPTION_CHANGED – a contact changed the subscription category. • PUSH_SUBSCRIBED — a contact subscribed to push notifications.

campaignType

string

Campaign type: • IM — triggered message, • Group — bulk campaign.

clickEventLink

string

Contains the link clicked by a contact (when the status is CLICKED)

contactId

int

Contact ID in Reteno (Internal)

currency

string

Currency

externalCustomerId

string

Contact ID in your system (External)

externalOrderId

string

External order ID

mediaType

string

Media type (Sms, Email, WebPush, MobilePush, AppInbox, Widget)

messageInstanceId

int

Service field

messageName

string

Message name in Reteno account

messageTags

string

Message tags

messageUrl

string

Contains the link to the email web-version

orderDate

timestamp

Order creation date (format: '2021-10-08 11:11:02')

started (activityDateTime)*

timestamp

Day and time of message sending (format: '2021-10-08 11:11:02')

totalCost

float

Total order cost

utmCampaign

string

Campaign UTM

eventKey

string

Event key

eventTypeKey

string

Event type key

messageLanguageCode

string

Message language code

orderId

int

Order ID in Reteno (Internal)

workflowId

int

Workflow ID

broadcastId

int

Broadcast ID

*The field will be removed as overdated; use the field indicated in brackets

📘

Note

Existing entries in the Revenue table (for orders placed after 03.08.2024) can be updated along with the upload of new orders. Updating may be necessary, for example, if the total cost of the order has changed.

Use Cases

Here are some key use cases for exporting data from Reteno to BigQuery:

1. Advanced Campaign Performance Analysis

  • Dataset Used: broadcasts, contactActivities, messages
  • Description: BigQuery allows teams to perform complex analyses on broadcast performance, message open rates, and click-through rates, helping refine campaign strategies. Exporting broadcasts data with metrics like media type, message status, and segmentation criteria enables a deep dive into which campaigns drive the best user engagement.
  • Use Case Benefit: By identifying high-performing campaigns, marketers can optimize message content, timing, and target audiences, improving future campaign effectiveness and ROI.

2. Customer Segmentation and Behavioral Analytics

  • Dataset Used: contacts, contactActivities, events
  • Description: BigQuery can process large volumes of customer activity and segmentation data to identify patterns in user behavior, such as engagement frequency or preferred communication channels. This enables mobile apps to identify highly engaged users and customize interactions accordingly.
  • Use Case Benefit: With detailed segmentation analysis, apps can create highly personalized, behavior-driven campaigns that lead to better user retention and increased lifetime value (LTV).

3. Personalization and Retargeting

  • Dataset Used: devices, contacts, contactActivities, events
  • Description: Exported data on user devices, activities, and engagement history allows for personalized retargeting efforts based on past behavior. For example, data on contacts’ last activity and device types enables personalized messaging for re-engagement.
  • Use Case Benefit: Personalizing messages based on user activity enhances user experience and increases the likelihood of conversion, creating a more dynamic engagement strategy.

4. Predictive Modeling for Churn and Retention

  • Dataset Used: contacts, orders, revenue, contactActivities
  • Description: With datasets that contain historical revenue, engagement, and order data, BigQuery can be used to create predictive models for user churn and retention. These models help identify at-risk users based on engagement history, purchasing patterns, and campaign response rates.
  • Use Case Benefit: By identifying users likely to churn, apps can trigger targeted campaigns or loyalty offers to retain them, ultimately reducing churn and increasing LTV.

5. Order and Revenue Analysis for Strategic Insights

  • Dataset Used: orders, orderItems, revenue
  • Description: Detailed order and revenue data exported to BigQuery allows teams to monitor average order values, purchasing frequency, and revenue trends. Analyzing these metrics helps identify opportunities for upselling, product bundling, and other revenue-boosting strategies.
  • Use Case Benefit: By understanding revenue patterns, mobile apps can make data-driven decisions on pricing, promotions, and customer incentives to maximize revenue and profitability.

6. Monitoring and Alerting on Key Metrics

  • Dataset Used: broadcasts, contactActivities, revenue
  • Description: With data exported to BigQuery, teams can set up dashboards to monitor key performance metrics like message delivery rates, engagement levels, and revenue. When abnormal trends are detected (e.g., a drop in delivery rates), teams can receive alerts.
  • Use Case Benefit: Monitoring allows for rapid response to performance issues, ensuring high campaign effectiveness and consistent user engagement.

7. Campaign ROI and Budget Allocation Analysis

  • Dataset Used: broadcasts, orders, revenue, contactActivities
  • Description: Exporting detailed broadcast and revenue data enables marketers to measure ROI by matching campaign efforts to revenue generated. This insight is valuable for calculating the cost-effectiveness of various campaigns and making informed budget allocation decisions.
  • Use Case Benefit: By analyzing campaign ROI, marketers can focus on high-performing campaigns and optimize spending, ultimately maximizing marketing effectiveness.

8. Customer Journey Mapping Across Channels

  • Dataset Used: contacts, contactActivities, events, orders
  • Description: BigQuery’s data processing allows the consolidation of user journeys, tracking users as they interact with different channels and messages throughout their lifecycle. This provides a cohesive view of how users progress from onboarding to conversion.
  • Use Case Benefit: Mapping the user journey offers insights into potential drop-off points and highlights areas for improvement, allowing apps to enhance the user experience and improve conversion rates.
