Creating Mobile Push Message
In this guide, you will learn how to create mobile push notifications.
To send mobile push messages via Reteno, you need to set up a connection between your mobile app and our system.
Once you set up the integration, you can prepare and send your mobile campaign.
Creating New Mobile Push

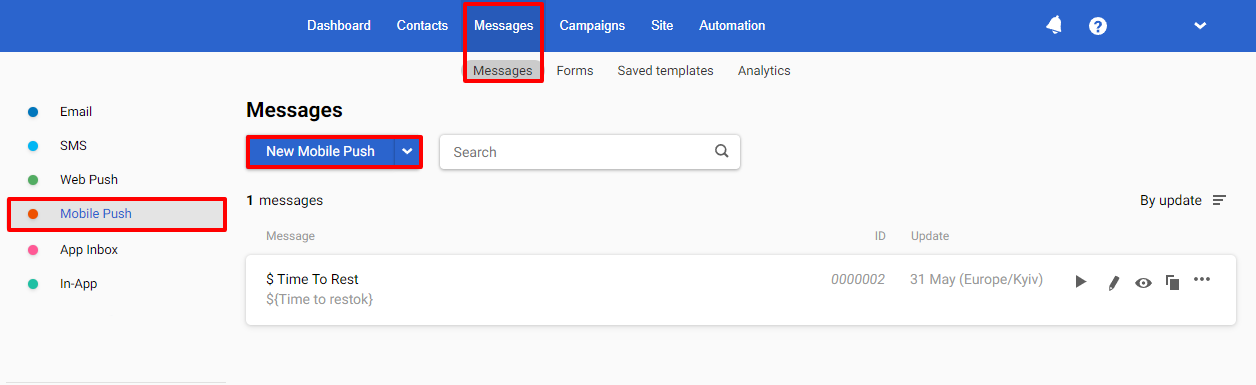

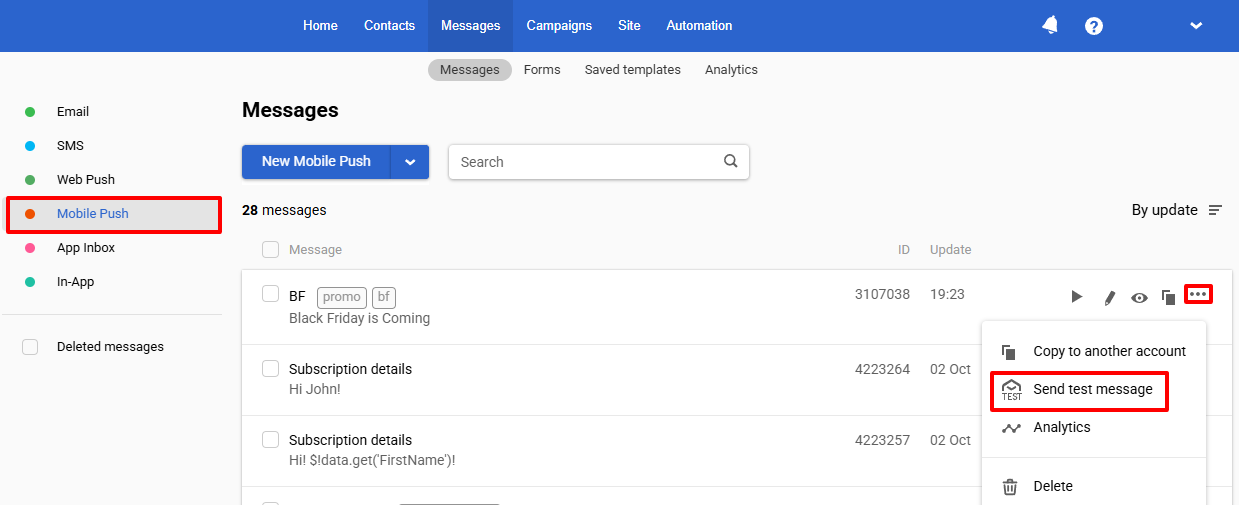

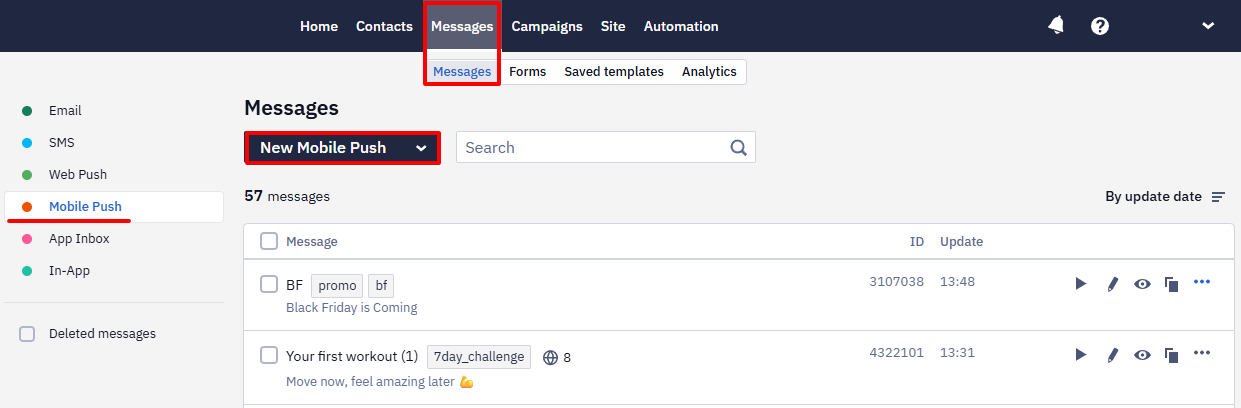

Go to Messages → Messages → select the Mobile Push section in the left sidebar. Click the Create Mobile Push button.

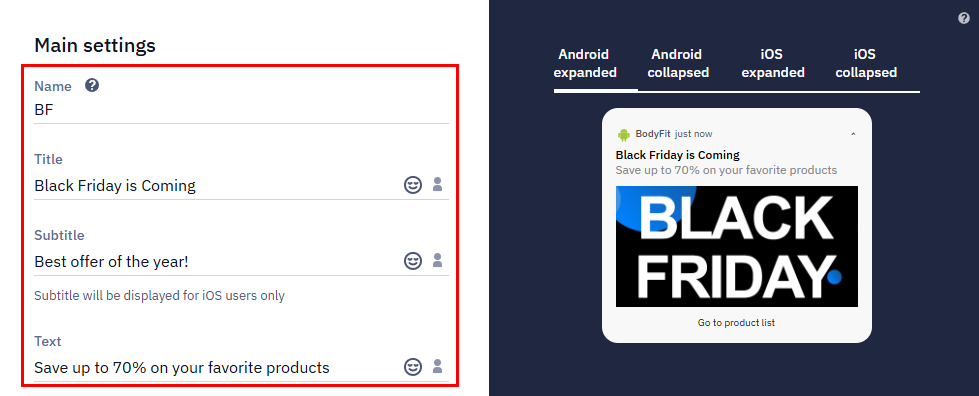

Fill in the following fields:
- Name. The system name that the recipient will not see.
- Title. Required field, the recipient will see its value in the message.
- Subtitle. Optional field, which value only iOS users will see.
- Text. The main content of a push message is up to 40 characters long. Please note that the display of the message may vary on different devices.

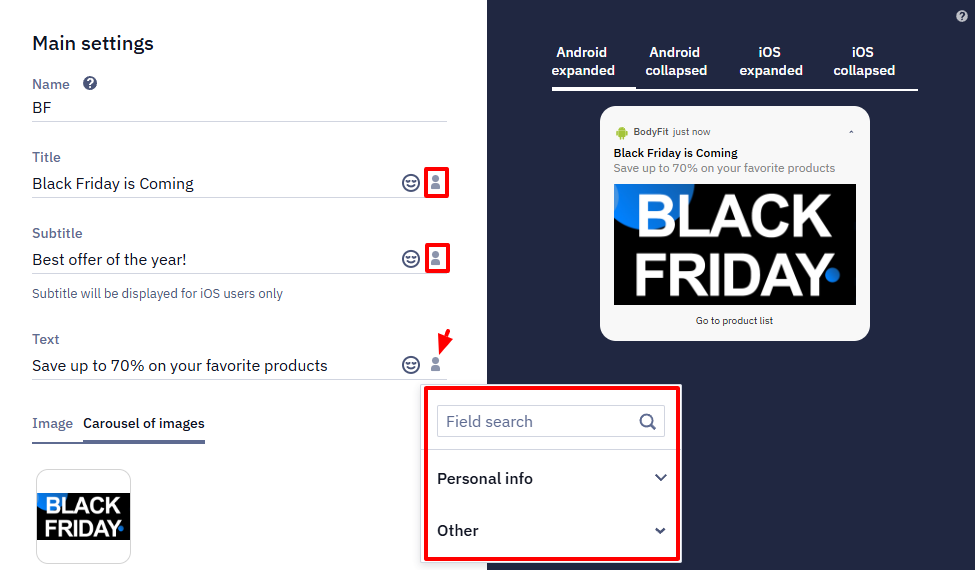

- Personalization. Use the dynamic variables to add a name, city, bonuses or any personal data available in the user profile. Click on the Personalization icon in the Title, Subtitle or Text field to select data.

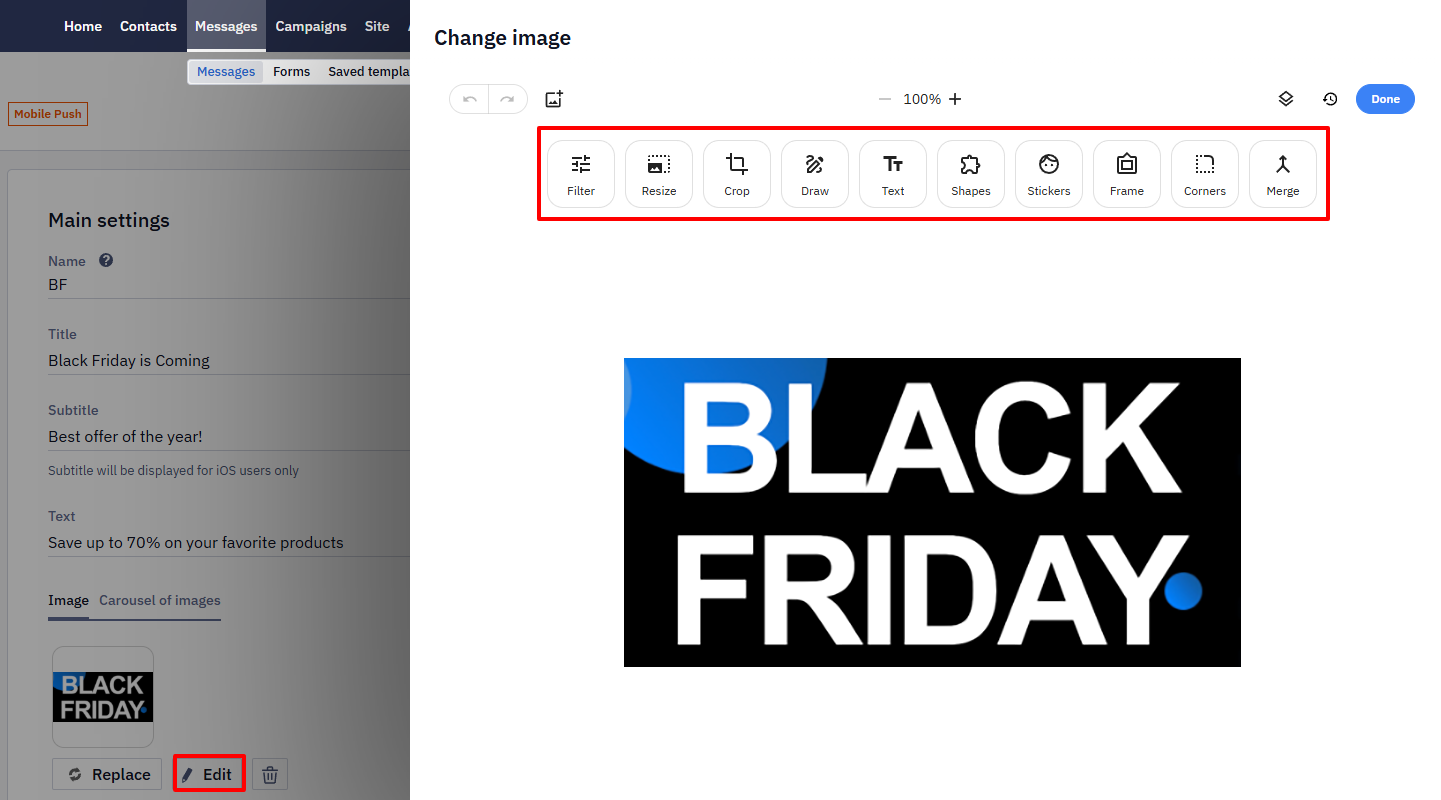

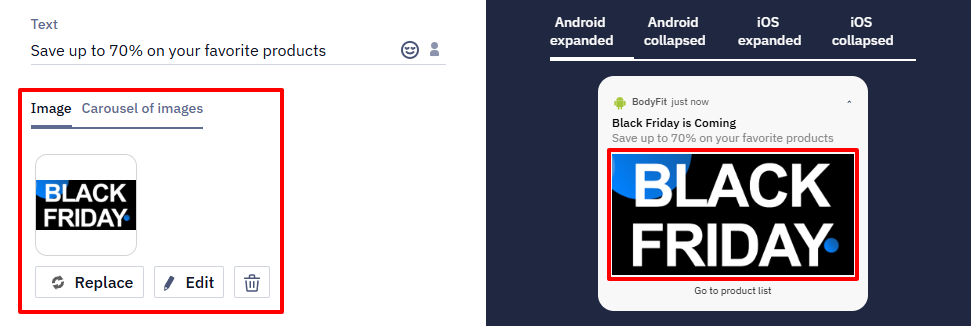

- Image. Add a 2:1 aspect ratio image, approximately 512x256, to your message body. Larger images will be scaled. The typical file size is up to 5 MB. GIFs are not supported.
- Image — one picture.
- Image carousel — up to 10 scrolling images. The carousel is available on Android and iOS devices. Before using the image carousel for iOS, you must set content extension.

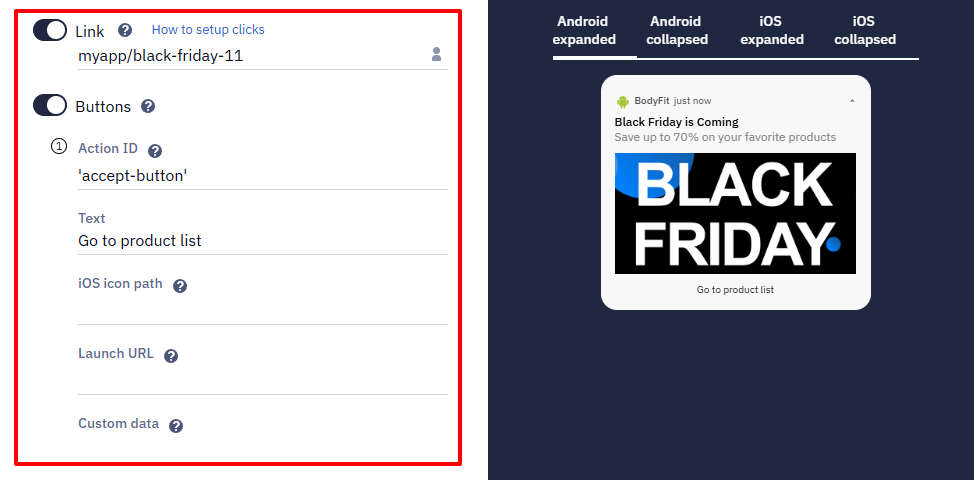

- Buttons. Use buttons to trigger any event. For example, some answer options or the transition to the specified URL. When a recipient touches the screen for an extended period of time (long pressing), it displays the actions assigned to your push notification.
For iOS, you can add up to four buttons; for Android — up to three.

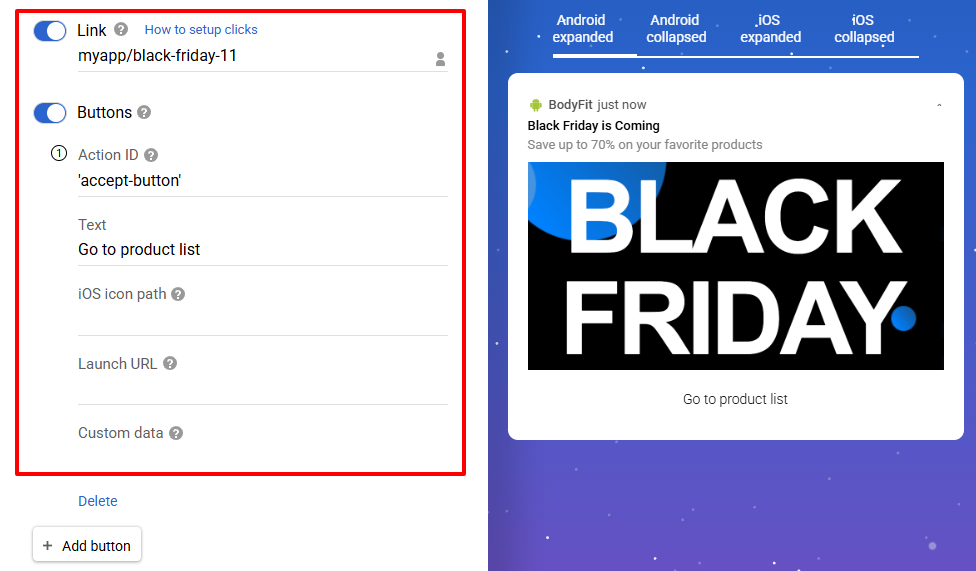

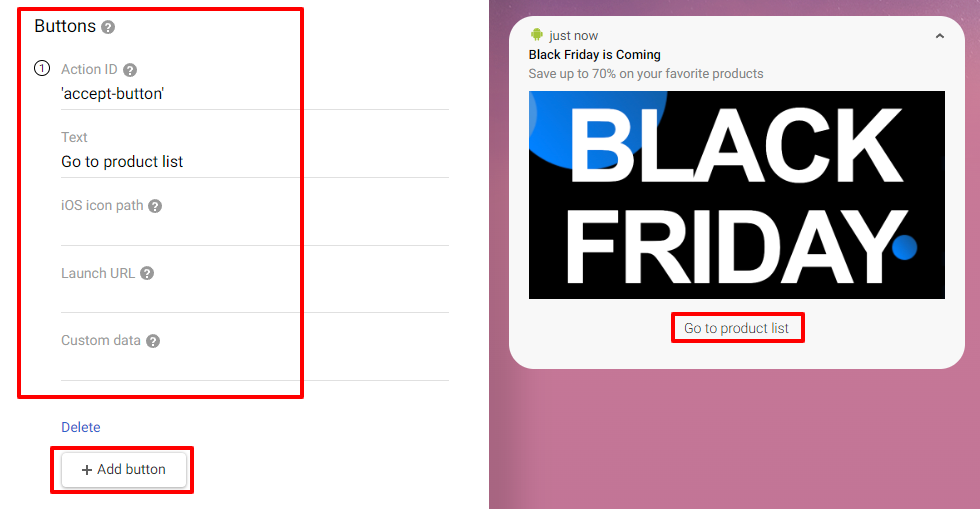

To add the action buttons to your mobile push notification, click + Add Button and enter the following parameters:
|Action ID||A unique identifier of the button action.|
|Text||The text that the button displays.|
|iOS icon path||The icon associated with an action. Available in iOS 15 and later. Enter the name of an image in your app’s bundle, preferably in an asset catalogue.|
|Launch URL||A URL or a deeplink that opens when the notification is selected.|
|Custom data||Additional parameters associated with the button in JSON format.|
You must enter the values in Action ID and Text for a button to work correctly. Use different Action IDs when you add several buttons.
To learn more about notification action icons, see Apple documentation.
For click event handling, you can use your preferred tools.
Also, you can use our SDK for this purpose. Learn more about installing and using our SDK for mobile apps.

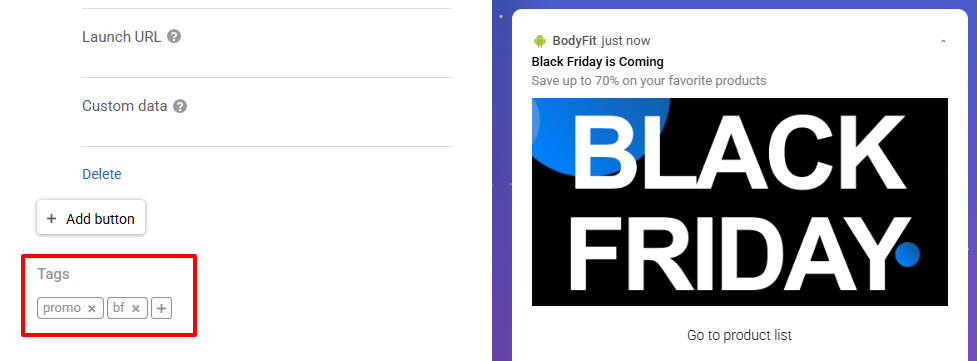

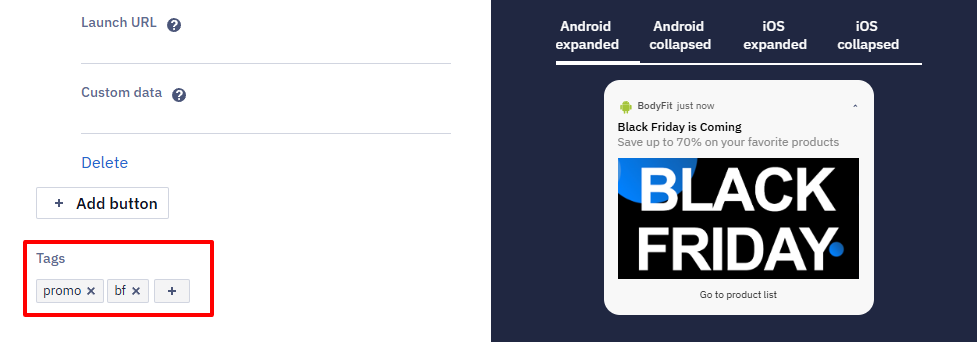

- Tags. Select tags from the list or enter a new one and click Enter. Use tags to filter search results and set campaign frequency strategy.
Fill in the following fields:

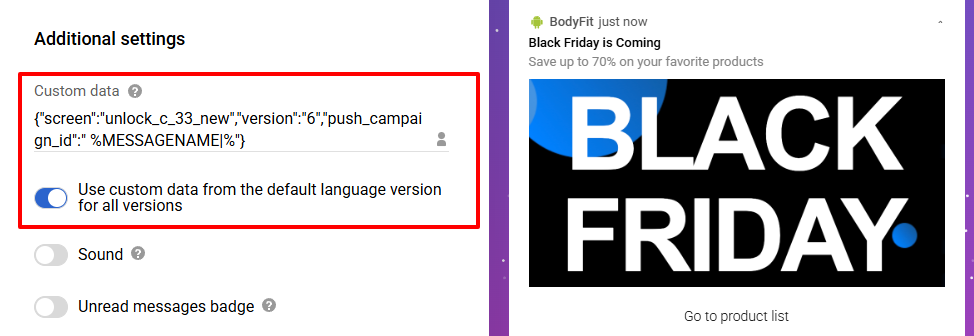

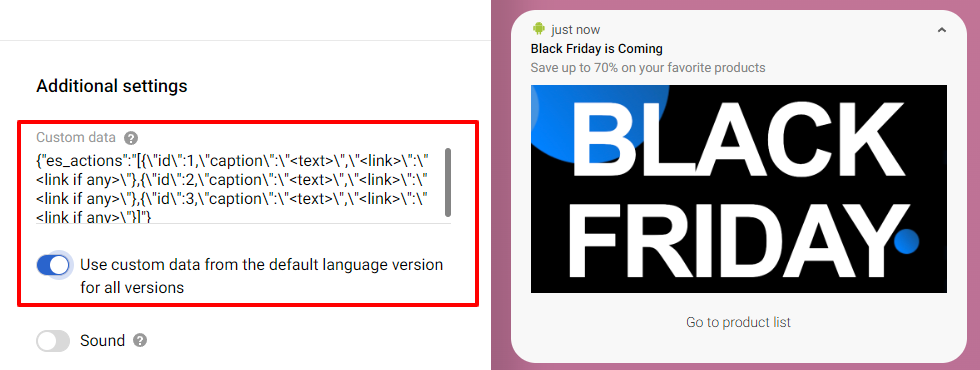

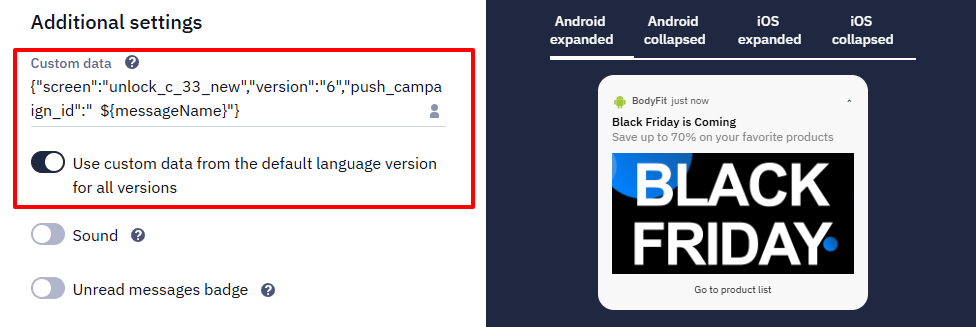

- Custom data. You can create push notification messages using custom data in JSON format. If custom data is used in a multilingual message, it can be applied to all language versions. To do this, activate the Use custom data from the default language version for all versions switcher. If the switcher is disabled, different custom data can be used in each language version.
Custom data allows you to send a set of parameters your app will further process and display to the app’s users correspondingly to your settings.
For example, create in-app message in the Custom data field.
Since Google has not opened a specialized API resource for in-app notifications yet, you can manually pass the value "type":"in-app" in the custom data. With this flag, your application will determine what to do with the notification:
✓ if the application is active but is in the background – ignore the display; ✓ if the user is interacting with the application – display.
Similarly, you can set other custom data fields for notification display.
This option will only work if your app supports custom data, regardless of the user’s device. Please make sure that your app’s developers have provided this option.

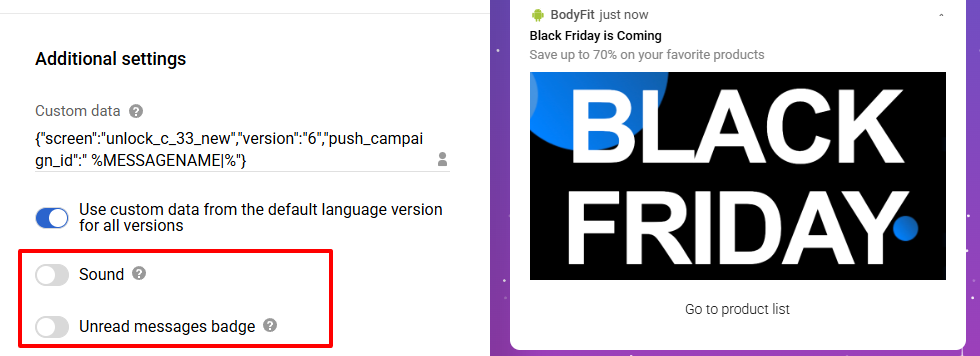

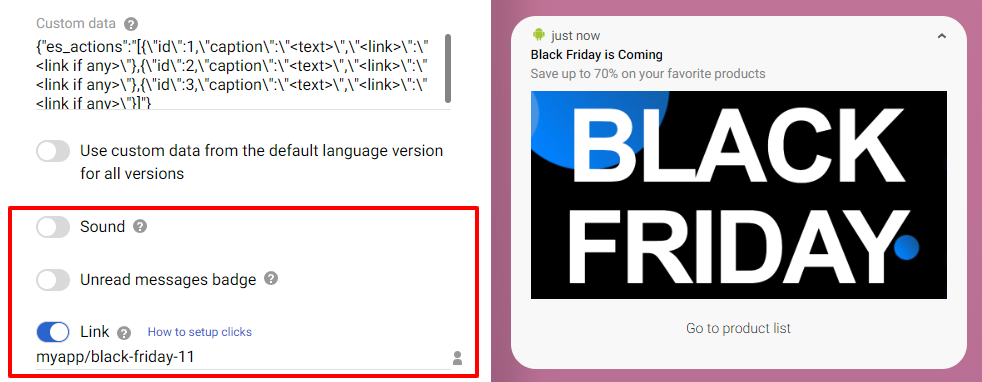

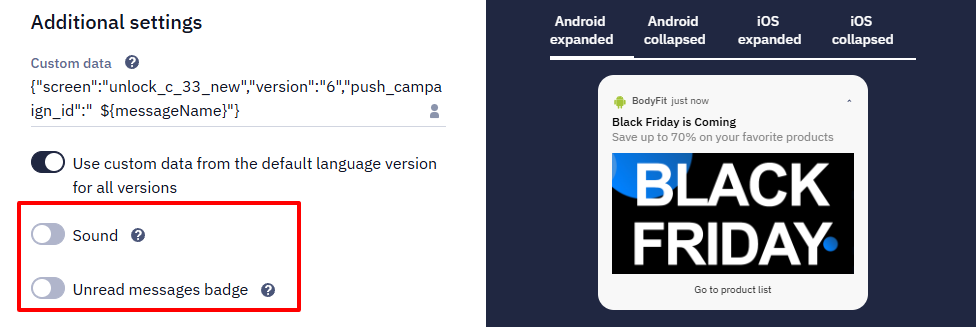

Sound. A sound to play when the device receives the notification.
Unread messages badge. By default, each notification increments a number displayed in the long-press menu. To display arbitrary values, activate the switcher and specify the desired number. For example, you can enter a value greater than the real one to attract attention or, conversely, lesser so as not to disturb the user with many unread messages.
Link. The URL can be opened by a device browser or as a deep link to a specific location within your mobile app. If no link is specified, a tap on the push notification will open the app. Also, you can set an individual link for each user using the personalization option.
We do not recommend using links with the HTTPS protocol in mobile pushes because, after the first click, the user will see a pop-up window asking where to open the link — in a browser or in a mobile app.
For the user to immediately get to the desired screen of the app by clicking, use links of the format “myphotoapp:Vacation?index=1”. Read more >

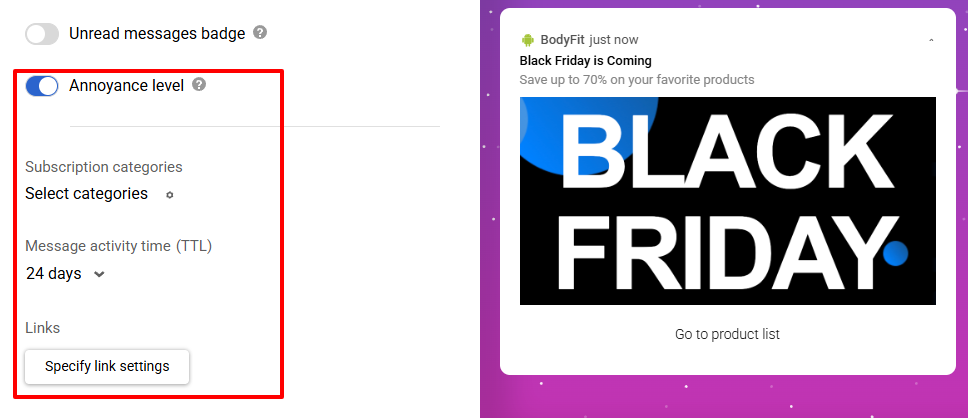

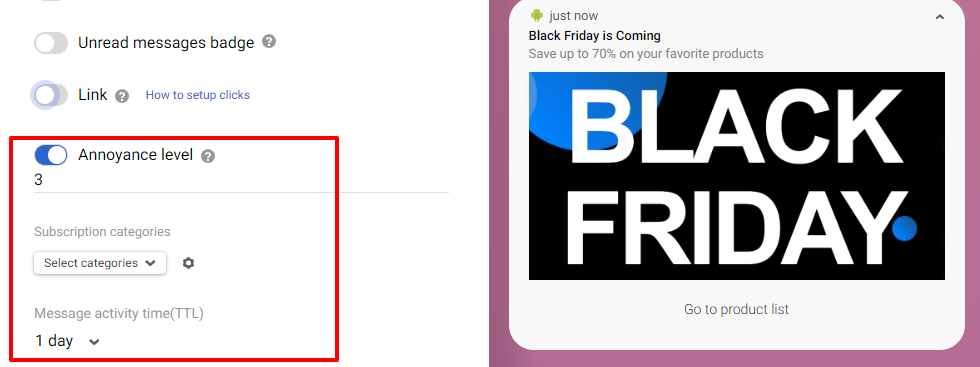

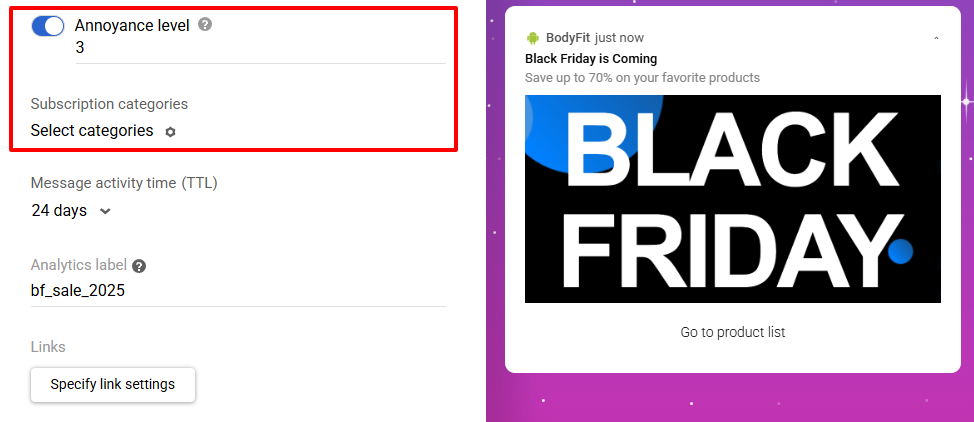

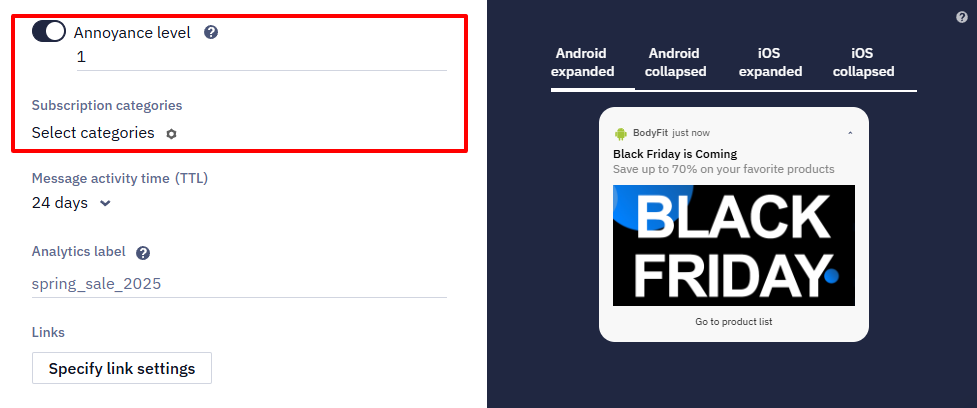

Annoyance level. Prioritize your notifications to protect subscribers from intrusive messages.
Subscription categories. Manage subscription categories to send messages to your contacts based on their preferences.

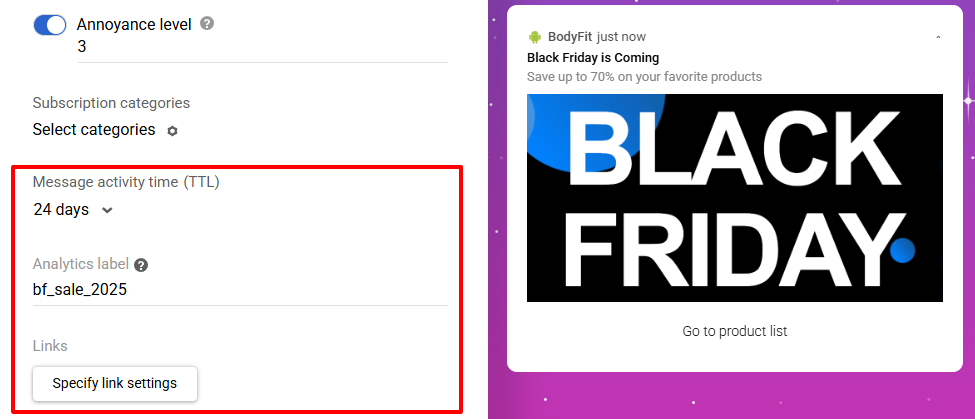

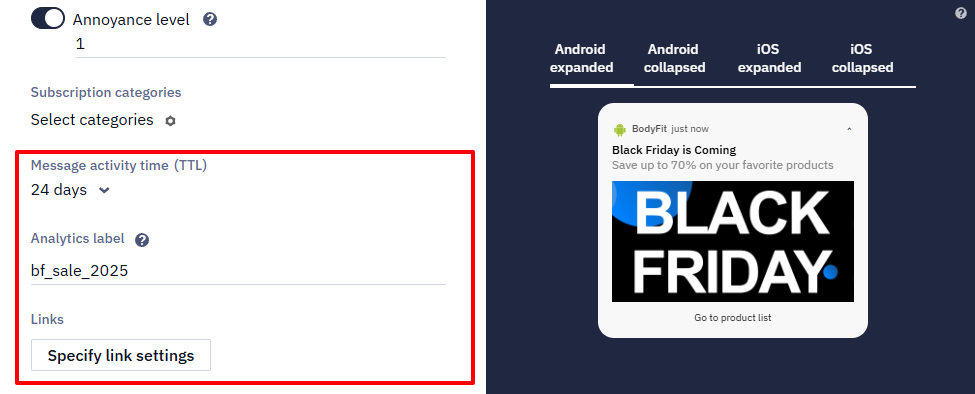

Time to Live (TTL). TTL — the period after which the message will not be displayed if it has not been delivered by this time. By default, it’s 1 day, but you can select other options.
Your organization’s logo is added to the mobile push notification from your app automatically.
Multilingual version (optional)

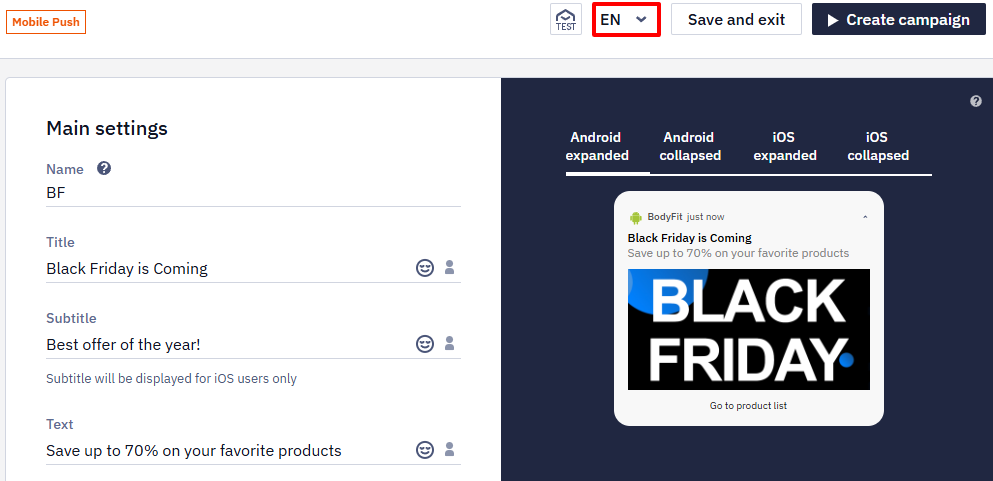

You can create multiple language message if this option is available in your pricing plan. Click the globe icon in the top panel, specify the default language and add language versions. Fill each version with the content in the corresponding language. You can switch between versions within one template in one click.

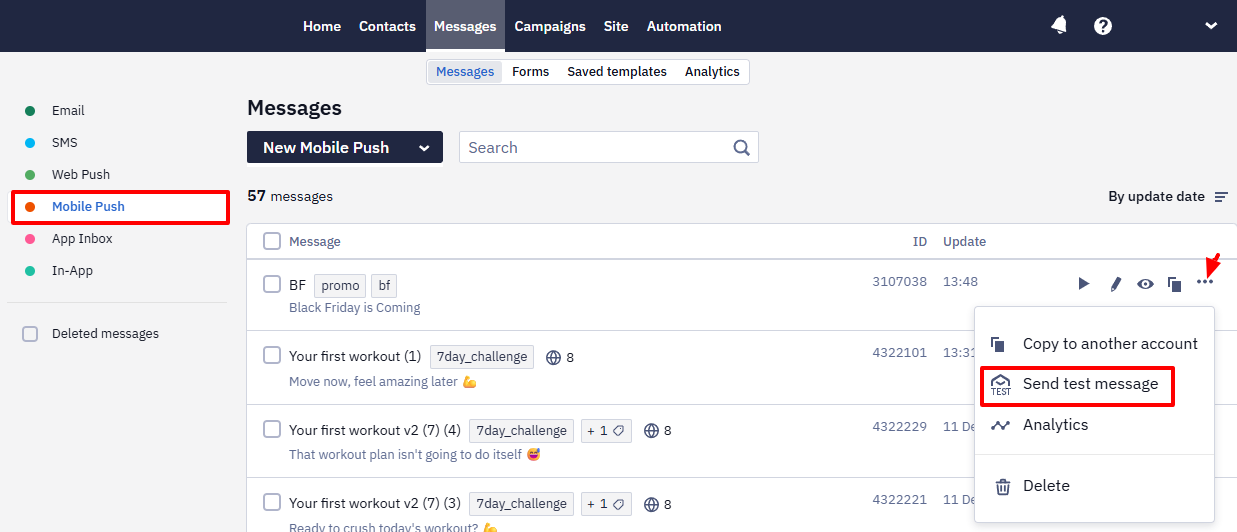

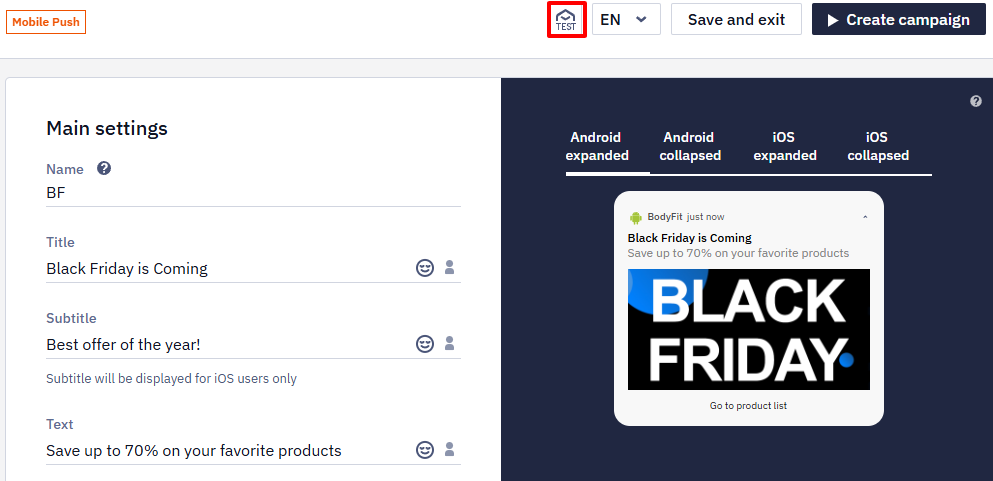

- Test the messages by clicking the Test button on the top panel.
- In a popup window, enter a phone number enter email, contactID, or phone number linked to the mobile push token.
- Under Application, select the app in which you want to send your push notification. If you have only one app, it will be selected automatically.

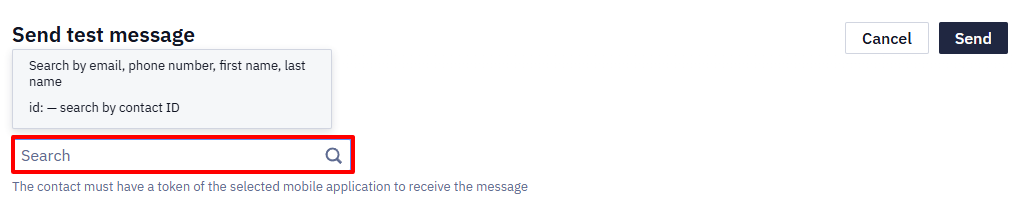

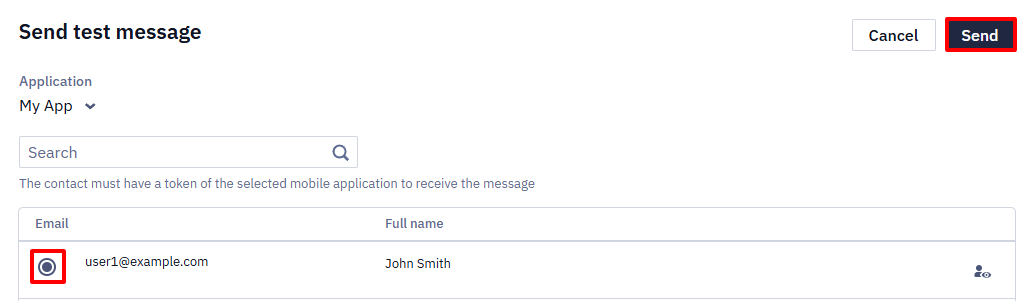

- Under Search, enter email, contactID, or phone number to send your push notification to.

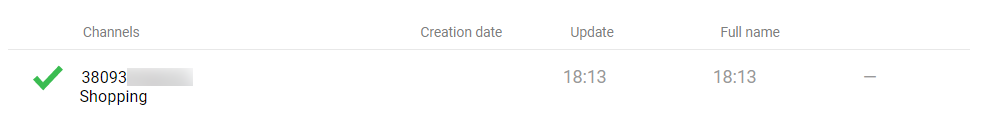

If the contact is an app user, you will see such status:
It means the provided contact data has a matching mobile token. You can send a test notification to this contact. Otherwise, you will receive the next notification: The contact does not have an application token.
After sending your test mobile notification, you’ll see how your push notification will look on the device it’s sent to. There are three options for how your push notification can be displayed:
On iOS: Push notifications display as a banner in the notification tray.
- A cropped push notification is displayed in the push notification drawer.
- The push notification is expanded in the push notification drawer.
