Integrating with Google BigQuery

Step-by-step guide how to export data from Reteno, your CRM, different databases to BigQuery. It allows you to manage and store all data, create multiple additional fields and custom reports, etc. in one place.

📘

Important

Please note that this integration is available only in the Growth and Enterprise plans

Reteno provides two options for BigQuery integration:

  • Exporting data from Reteno to BigQuery
  • Using data from BigQuery for segmentation and substitution of external data in messages.

To configure the BigQuery integration:

  • Register at Google Cloud Platform
  • Get a project key
  • Create tables in Google BigQuery
  • Configure two-sided BigQuery - Reteno data transfer

If you already have a project key and have configured the BigQuery tables, you can go directly to the connector settings.

Creating a Project Key

  1. Create a Google Cloud Platform account.

  2. Select a project → APIs & ServicesCredentials.

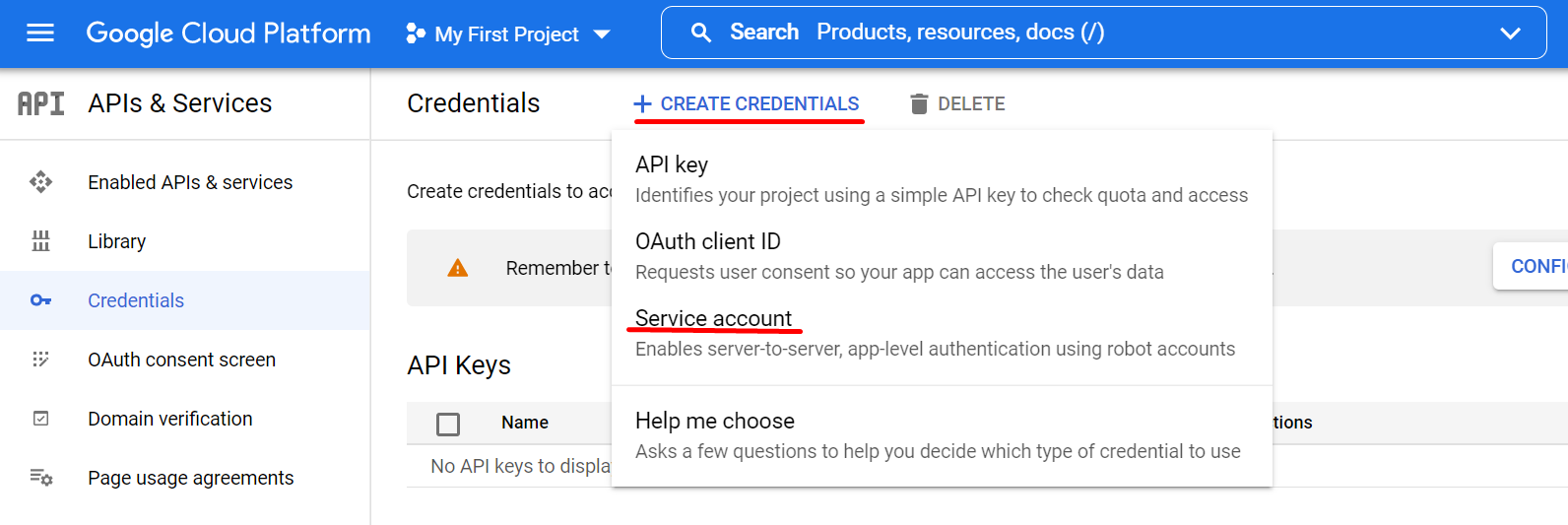

  1. Click Create credentialsService account.

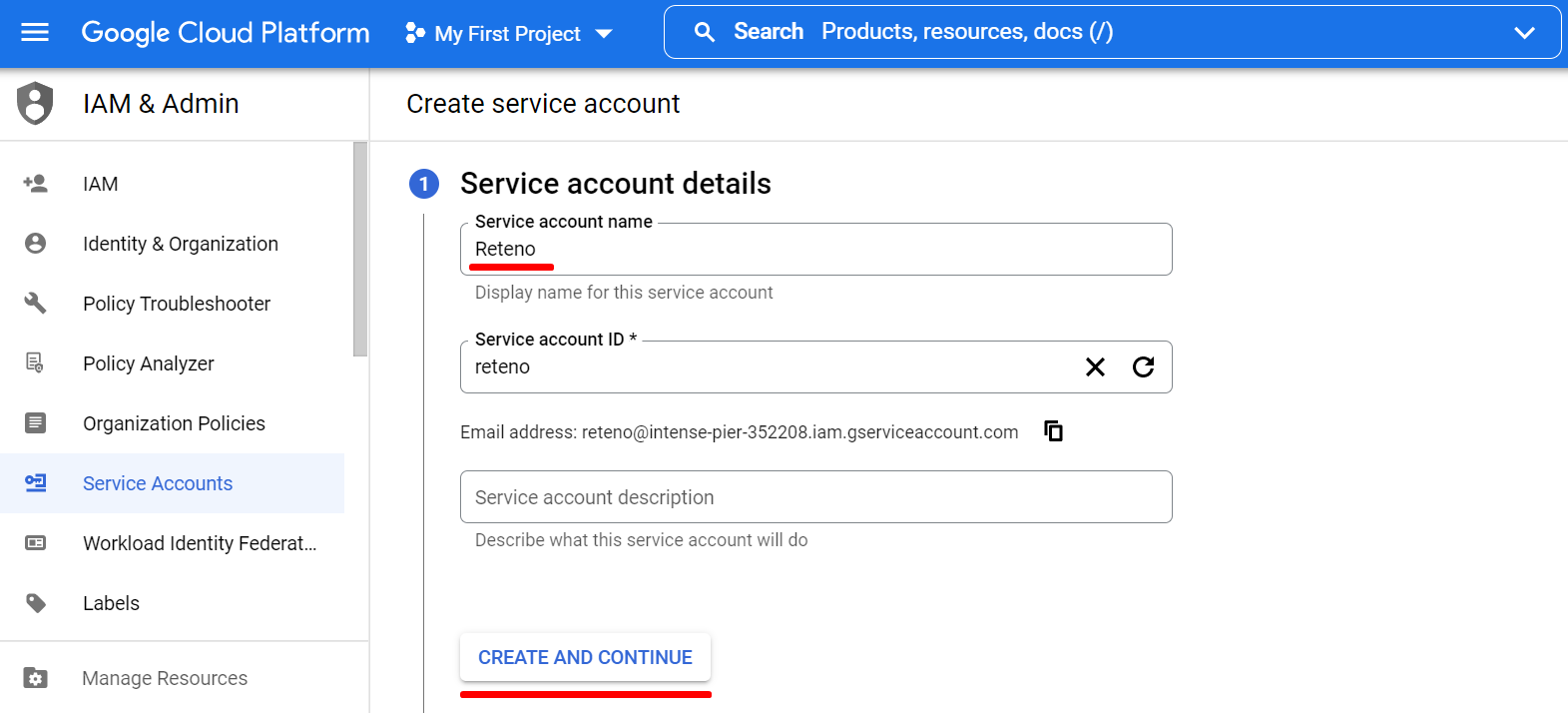

  1. Enter a service account name and click the Create and continue button.
  1. Select BigQuery Admin role, click ContinueDone.
  1. Click the link Manage service accounts on the main page of the Credentials section.
  1. Click on the three dots opposite created account and select the option Manage keys.

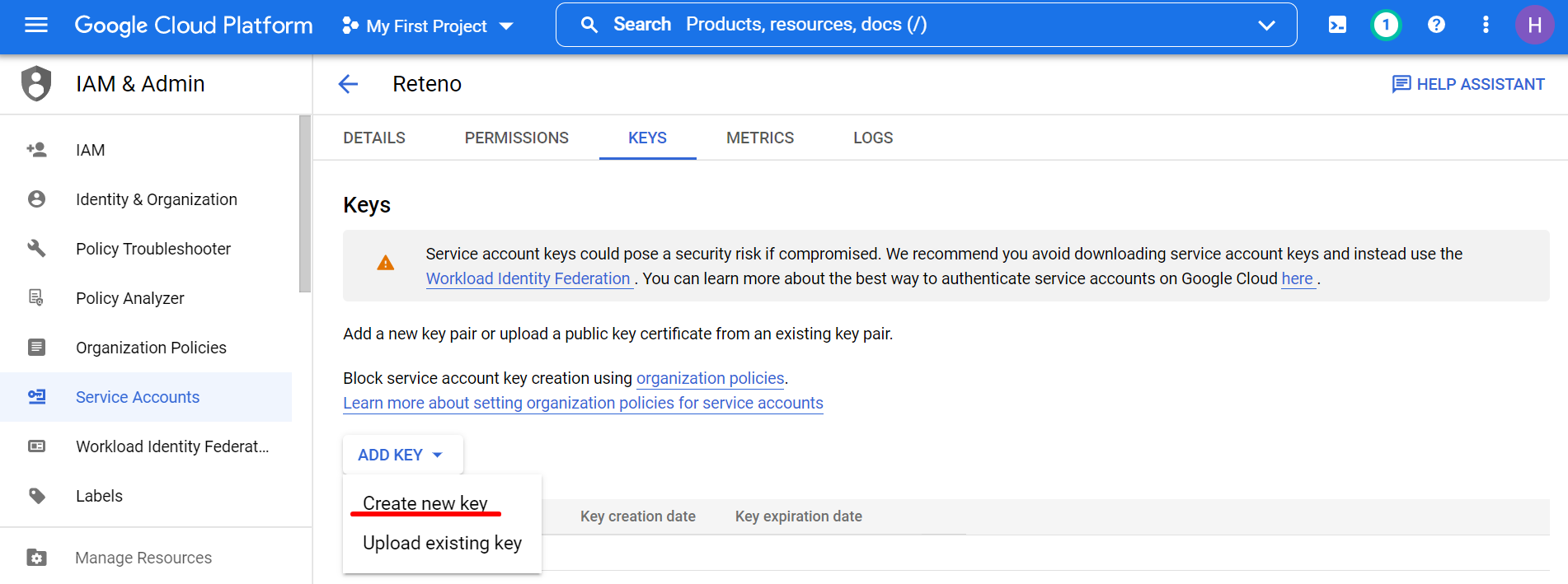

  1. Click on the Add key button and select Create new key option in Keys section.
  1. Select JSON key type and click Create.
  1. The browser will automatically download the key to the download folder.

Setting up BigQuery Connector

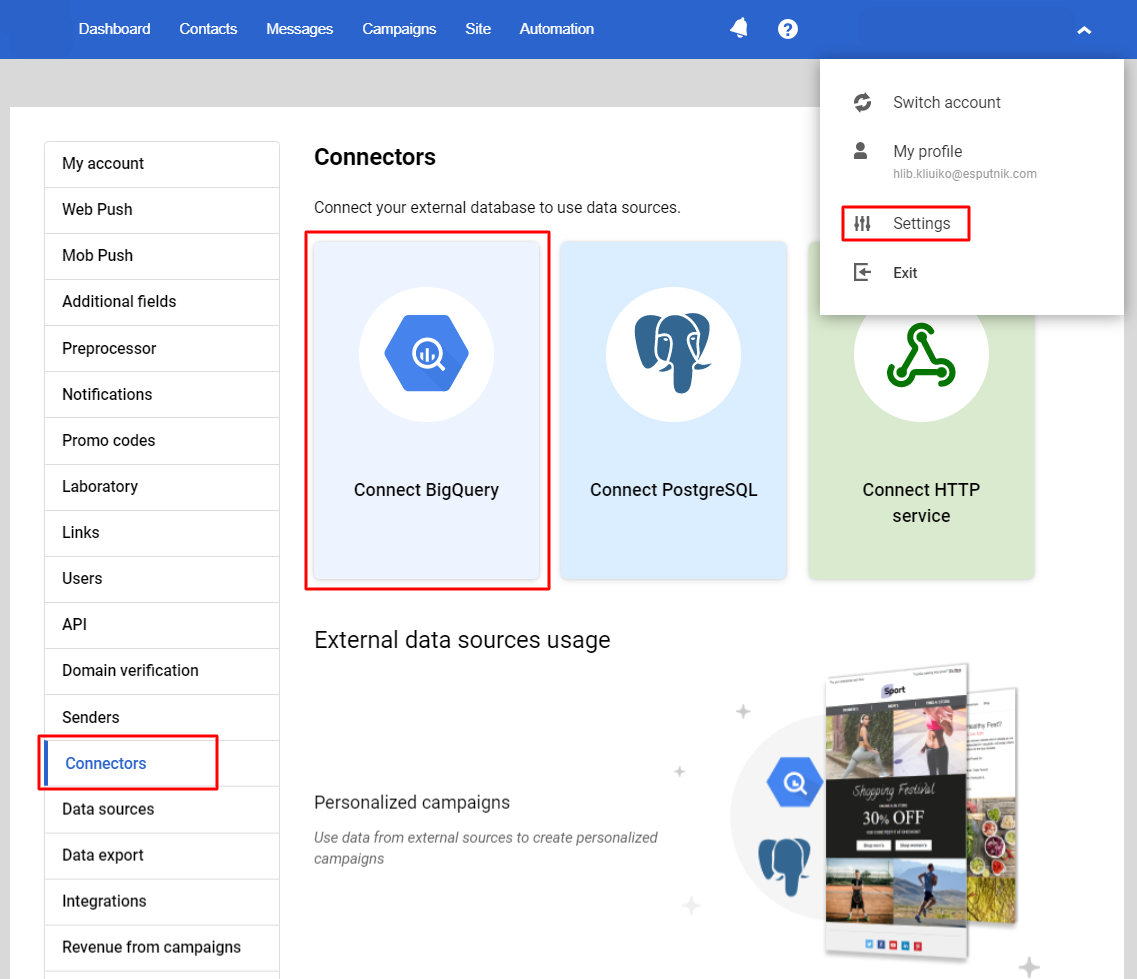

  1. Go to your profile → SettingsConnectors → and select Connect BigQuerry.

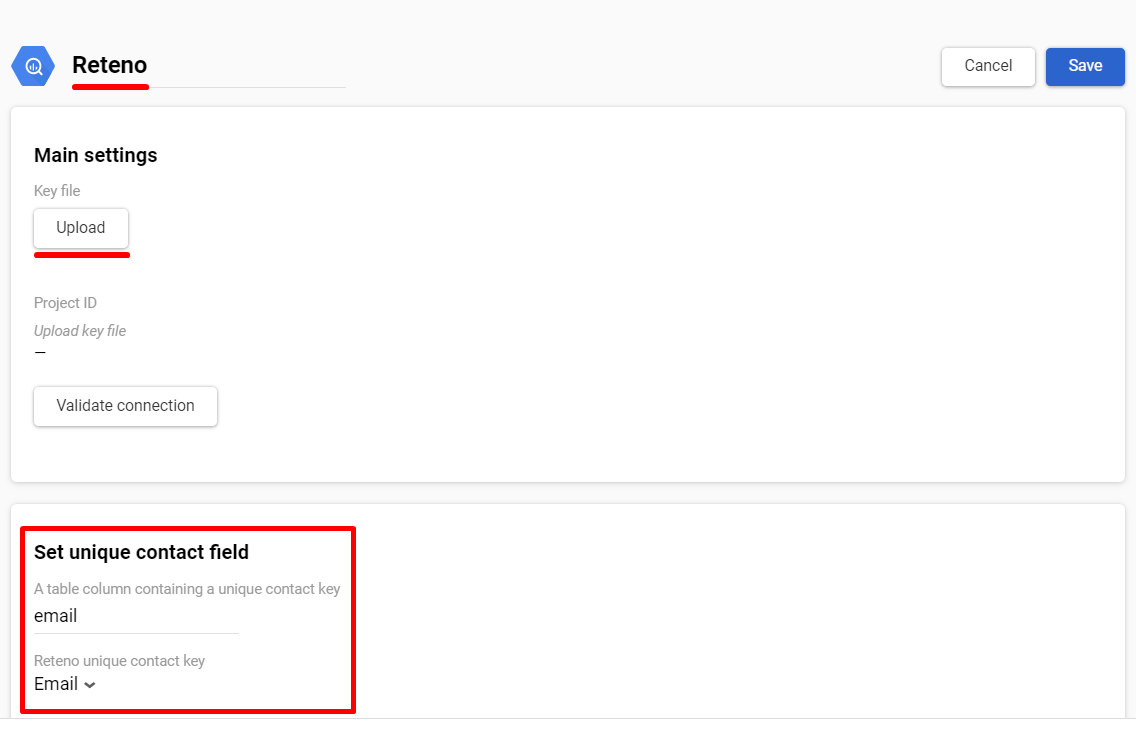

  1. Fill in the Name field and upload the key file. Set unique contact field: select a table column that contains a unique contact key and Reteno's unique contact key. They should match.

You may click Validate connection to test whether the authorization data is correct. You will see the notification if the connection is successful or not. If the connection fails, check the entered data and contact your system administrator if needed.

  1. Click Save.

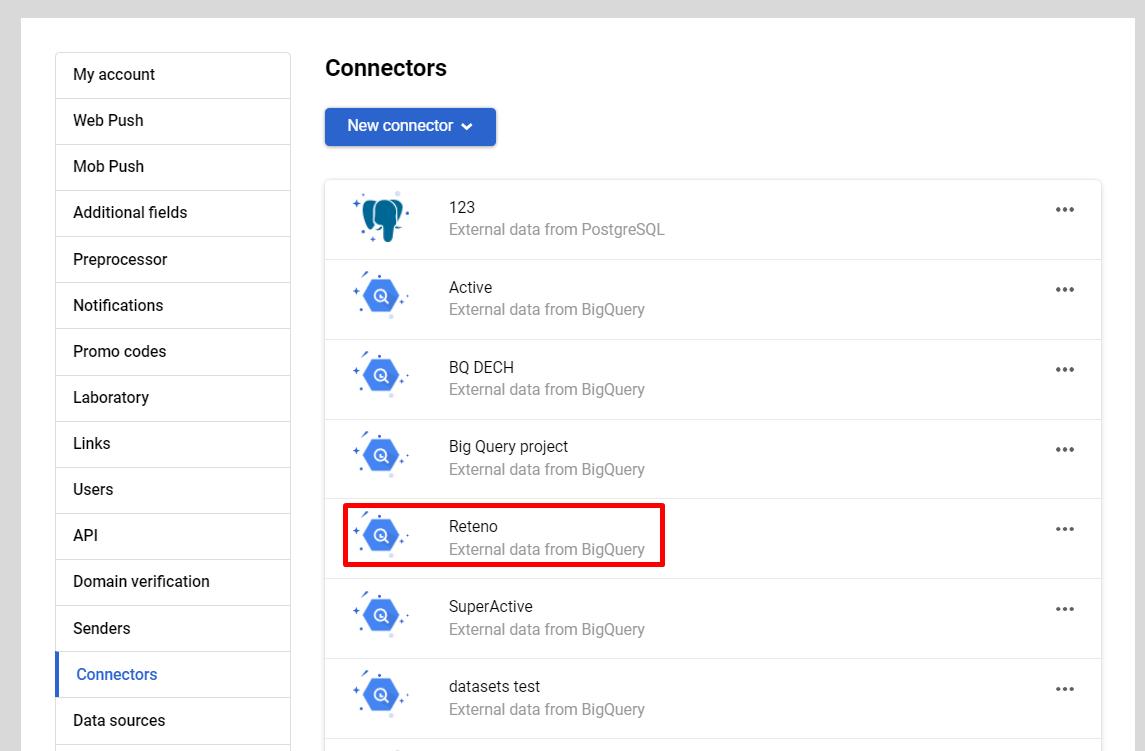

You will see created connector in SettingsConnectors. Click the tab with its name to edit the connector’s parameters.

Exporting Data to the BigQuery Table

To regularly update information about the audience, orders and campaign results in BigQuery, set up data export to tables. For example, you can export responses to an NPS survey, purchase history, date of the last click in a message, etc.

Available datasets for export:

  • contactActivities;
  • contacts;
  • orderItems;
  • orders;
  • revenue.
717

This information will be transferred to BigQuery and will update the data in the tables once a day after setting up.

📘

Important

You don’t need to pre-create BigQuery tables. They will be generated automatically at the first export, and since that all the incoming data will be updated. All the table names will correspond to the data sets (contact activities, contacts, order items, orders)

List of Data Export Parameters

ContactActivities

ParameterTypeDescription
activitystringActivity status:
• DELIVERED – the message was delivered.
• UNDELIVERED – the message was undelivered (statusDescription contains the reason).
• RECEIVED – the message was opened.
• UNSUBSCRIBED – a contact unsubscribed from the broadcasting list.
• CLICKED – a contact clicked links in the message.
• SPAM – a contact reported spam.
• SUBSCRIPTION_CHANGED – a contact changed the subscription category.
• PUSH_SUBSCRIBED — a contact subscribed to push notifications.
broadcastIdintBroadcast ID
campaignTypestringCampaign type:
• IM — triggered message,
• Group — bulk campaign.
clickEventLink stringContains the link clicked by a contact (when the status is CLICKED)
contactIdintContact ID in Reteno (Internal)
errorCodestringDelivery error SMTP and description
eventKeystringEvent key
eventTypeKeystringEvent type key
externalCustomerIdstringContact ID in your system (External)
mediaTypestringMedia type of the message (Sms, Email, WebPush, Viber, MobilePush, AppInbox)
messageInstanceIdintService field
messageLanguageCodestringMessage language code
messageNamestringMessage name in Reteno account
messageTagsstringMessage tags
messageURLstringContains the link to the email web-version
senderNamestringViber sender name
startedtimestampDay and time of message sending (format: '2021-10-08 11:11:02')
utmCampaign stringCampaign UTM
workflowIdintWorkflow ID

Contacts

ParameterTypeDescription
contactIdintContact ID in Reteno (Internal)
contactSource stringstringContact source:
• SITE_AUTOMATED - binding an email to a push subscriber (webPush collection script),
• I_MESSAGE - sending a single message,
• CAMPAIGN - workflow (block Create contact or Add to segment),
• IMPORT - file import or Add contacts method,
• MANUAL - manually created,
• SUBSCRIPTION - subscription form (Subscribe a contact API method),
• Add contact API method,
• ORDER - order on the site (Add orders API method).
createdDatetimestampContact creation date and time (format: '2021-10-08 11:11:02')
email stringContact email
emailDomainstringEmail domain
emailStatusstringEmail status
externalCustomerId stringContact ID in your system (External)
firstName stringContact first name
languageCode stringContact language code
lastClickedDate timestampDay and time of the last click (format: '2021-10-08 11:11:02')
lastNamestringContact last name
lastReceivedDate timestampDay and time of the last delivery (format: '2021-10-08 11:11:02')
lastSentDate timestampDay and time of the last sending (format: '2021-10-08 11:11:02')
lastViewedDatetimestampDay and time of the last opening (format: '2021-10-08 11:11:02')
smsstringPhone number
totalClickedintTotal clicks amount
totalReceivedintTotal received messages amount
totalSentintTotal sent messages amount
totalViewedintTotal viewed messages amount

OrderItems

ParameterTypeDescription
cost floatfloatProduct price
descriptionstringProduct description
externalProductIdstringExternal product ID
imageUrlstringProduct image link
namestringProduct name
orderDatetimestampOrder creation date (format: '2021-10-08 11:11:02')
orderIdintOrder ID in Reteno (Internal)
quantityintNumber of products
urlstringProduct URL

Orders

ParameterTypeDescription
contactIdintContact ID in Reteno (Internal)
deliveryAddress stringDelivery address
deliveryMethodstringDelivery method
discountfloatDiscount
emailstringEmail
externalOrderIdstringExternal order ID
firstName stringContact first name
lastNamestringContact last name
orderCreatedDatetimestampDate of order creation in Reteno (format: '2021-10-08 11:11:02')
orderDate timestampOrder creation date (format: '2021-10-08 11:11:02')
orderId intOrder ID in Reteno (Internal)
paymentMethodstringPayment method
PhonestringPhone number
StatusstringOrder status:
• INITIALIZED,
• IN PROGRESS,
• DELIVERED,
• CANCELED.
totalCostfloatTotal order cost

Revenue

ParameterTypeDescription
activitystringActivity status:
• DELIVERED – the message was delivered.
• UNDELIVERED – the message was undelivered (statusDescription contains the reason).
• RECEIVED – the message was opened.
• UNSUBSCRIBED – a contact unsubscribed from the broadcasting list.
• CLICKED – a contact clicked links in the message.
• SPAM – a contact reported spam.
• SUBSCRIPTION_CHANGED – a contact changed the subscription category.
• PUSH_SUBSCRIBED — a contact subscribed to push notifications.
campaignType stringCampaign type:
• IM — triggered message,
• Group — bulk campaign.
clickEventLink stringContains the link clicked by a contact (when the status is CLICKED)
contactIdintContact ID in Reteno (Internal)
currency floatCurrency
externalCustomerId stringContact ID in your system (External)
externalOrderId stringExternal order ID
mediaType stringMedia type of the message (Sms, Email, WebPush, Viber, MobilePush, AppInbox)
messageInstanceIdintService field
messageName stringMessage name in Reteno account
messageTags stringMessage tags
messageUrl stringContains the link to the email web-version
orderDate timestampOrder creation date (format: '2021-10-08 11:11:02')
senderName stringViber sender name
startedtimestampDay and time of message sending (format: '2021-10-08 11:11:02')
totalCostfloatTotal order cost
utmCampaign stringCampaign UTM

Setting up BigQuery Connector for Data Export

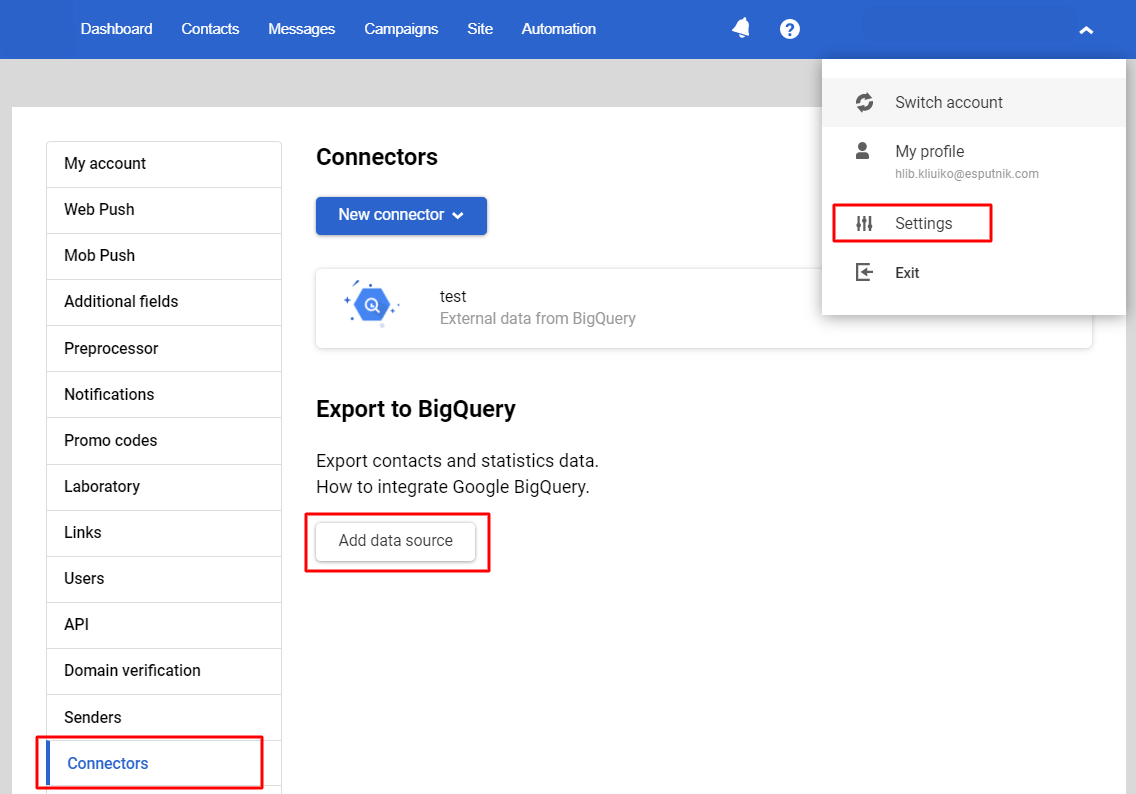

  1. Go to SettingsConnectors and click Add data source.
  1. Upload the key file and check the boxes for the data sets you want to upload. Click Save.
1511

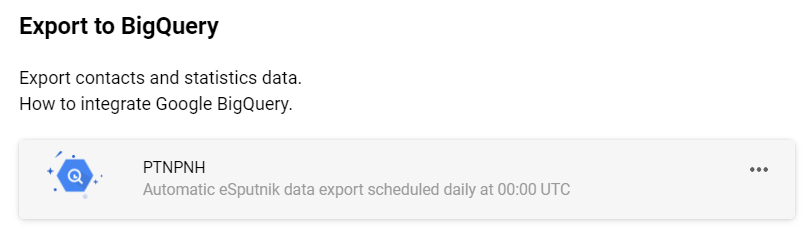

The connection will be displayed in ConnectorsExport to BigQuery, here you can edit the settings.

Configuring a Data Source

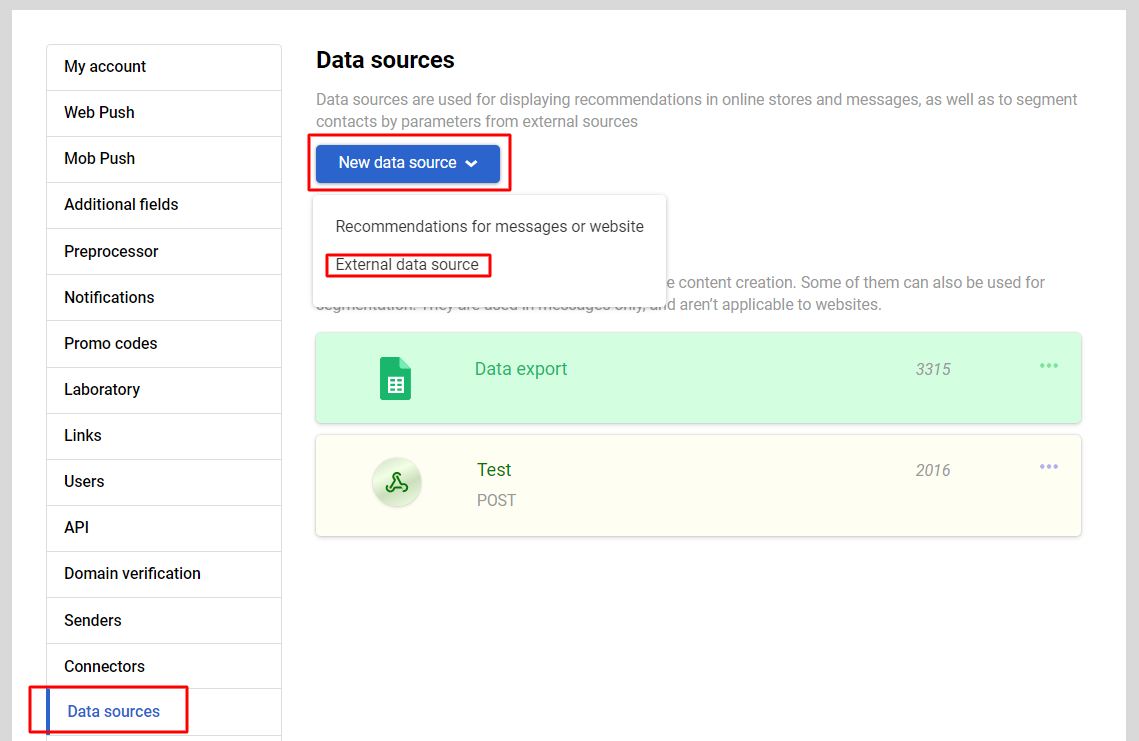

  1. Go to your profile > Settings > Data sources, click New data source and select External data source.

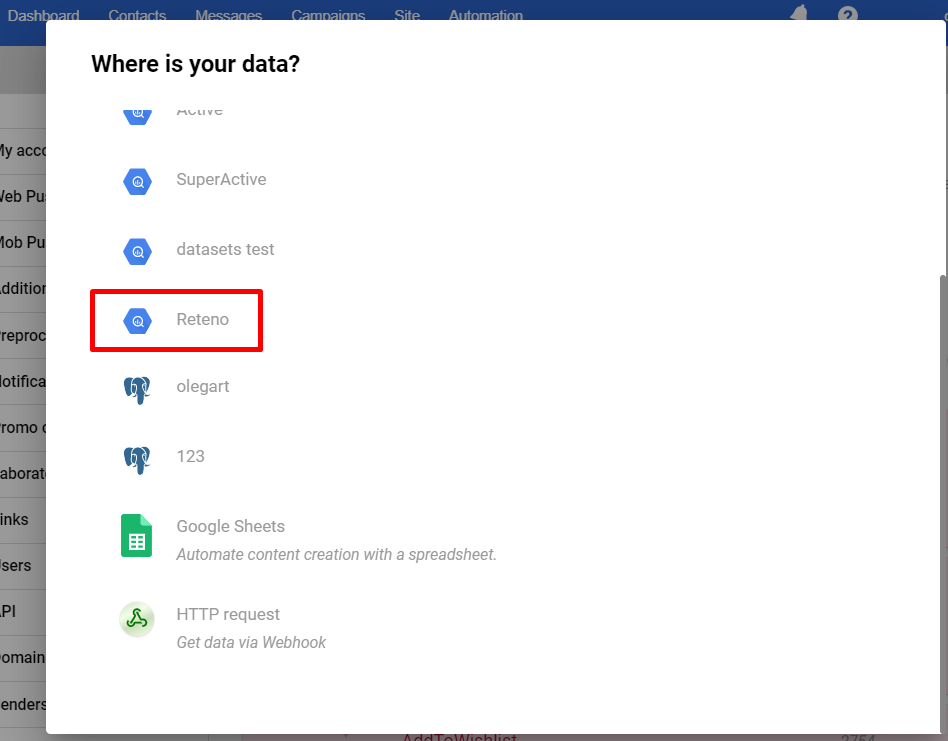

  1. Select the created connector.
  1. Select dataset and table and enter a source name. Click Save.
  1. Import contacts to Reteno and fill the external source with data. Now you can build segments based on the imported contact fields.

📘

Important

Connection to the external database doesn’t presuppose contact import. Segmentation is only available for contacts that exist both in your Reteno account and in the external database. Synchronize and update contacts before creating campaigns.

Adding data to a message is similar to adding data from PostgreSQL.
